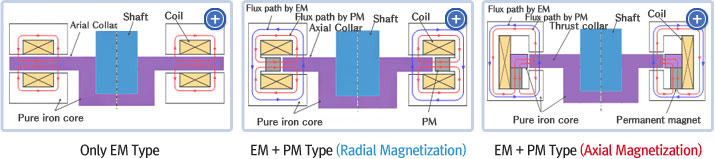

| • Thrust magnetic bearings are divided into three types. (EM = ElectroMagnet, PM = Permanent Magnet) |
 |
|
| |
Electromagnet Type
|
Electromagnet +
Permanent Magnet Type
(Radial Magnetization) |
Electromagnet +
Permanent Magnet Type
(Axial Magnetization) |
| Rotor Thrust Collar Diameter
|
Large
|
Small
|
Small
|
| Bias Current
|
Required
|
Do not Required
|
Do not Required
|
Energy Loss
&
Stator Heating
|
High
|
Very low
|
Very low
|
| The Number of Current driver
|
2 |
1 |
1 |
| Manufacture
|
- |
Difficult
|
Easy
|
|
|

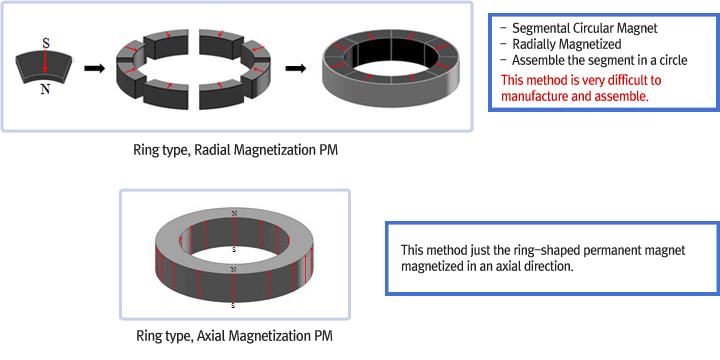

| • Radially and axially magnetized permanent magnet manufacturing method. |
 |
• Magnetar Applied Axially magnetized PM in thrust bearing.
• This enables high speed rotor design and ensures the reliability of repeated production. |
|
| • Video : Thrust Magnetic Bearing – Levitation & Flux Flow |
 |
|

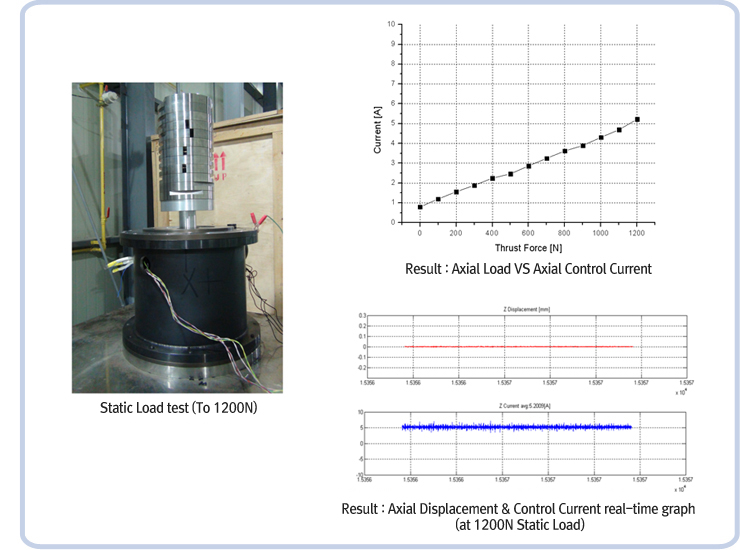

| • Test of Thrust Magnetic Bearing Axially Performance |
 |
|
