High speed electrical machines have been under intensive research and development recently because of their numerous advantages such as a simple structure, small size, and low weight.

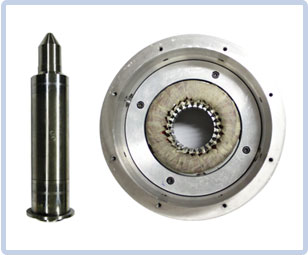

Co., Magnetar has succeeded in developing high-speed permanent maget synchronous motor that can be applied high value added rotating machine products, which supplement disadvantage that support a load of ball bearing and air foil bearing.
 |
|
- Turbo refrigerant compressor
- Turbo blower
- Flywheel energy storage
- High speed spindle |
|
|
| ■ Design Case |
|
| Classification |
Rotation speed[rpm] |
Power[kW] |
Application |
| DC |
18,000
|
3 |
Dry pump
|
| 18,000 |
5 |
Dry pump
|
| 30,000 |
5 |
Dry pump
|
| AC |
60,000 |
7.5 |
Compressor
|
| 150,000 |
4.7 |
Compressor
|
| 90,000 |
18 |
Turbo blower
|
|
|
| Model |
Rotation speed[rpm]
|
Power[kW] |
Length[mm] |
Datasheet |
| M20-20 ~ M20-200 |
20,000 |
200w – 250kW
|
30mm – 100mm
|
|
| M50-20 ~ M50-80 |
50,000 |
450w – 100kW |
30mm – 90mm |
|
| M80-20 ~ M80-50 |
80,000 |
600w – 20kW |
30mm – 70mm |
|
|
|
|
