| - Magnetic bearing system is that supports a load using magnetic levitation principle. |
 |

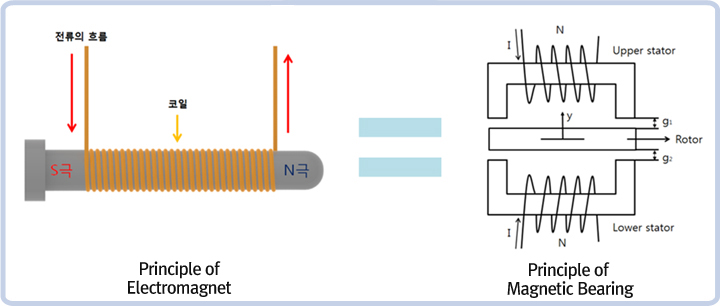

- The rotor is pulled by electromagnetic force toward the electromagnet because the current driver supplies
equal bias current to two pairs of electromagnets on opposite sides of a rotor.
- Depending on this principle, magnetic bearing can be supported contact-free levitation of an object by
electromagnetic forces. |
|
 |
|
 |
|
 |

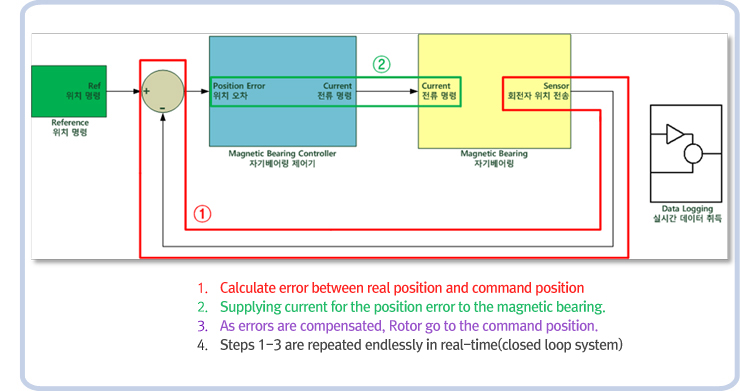

| - Control Block Diagram |
 |
|
 |
|
 |
|
 |
|
 |
|
|
